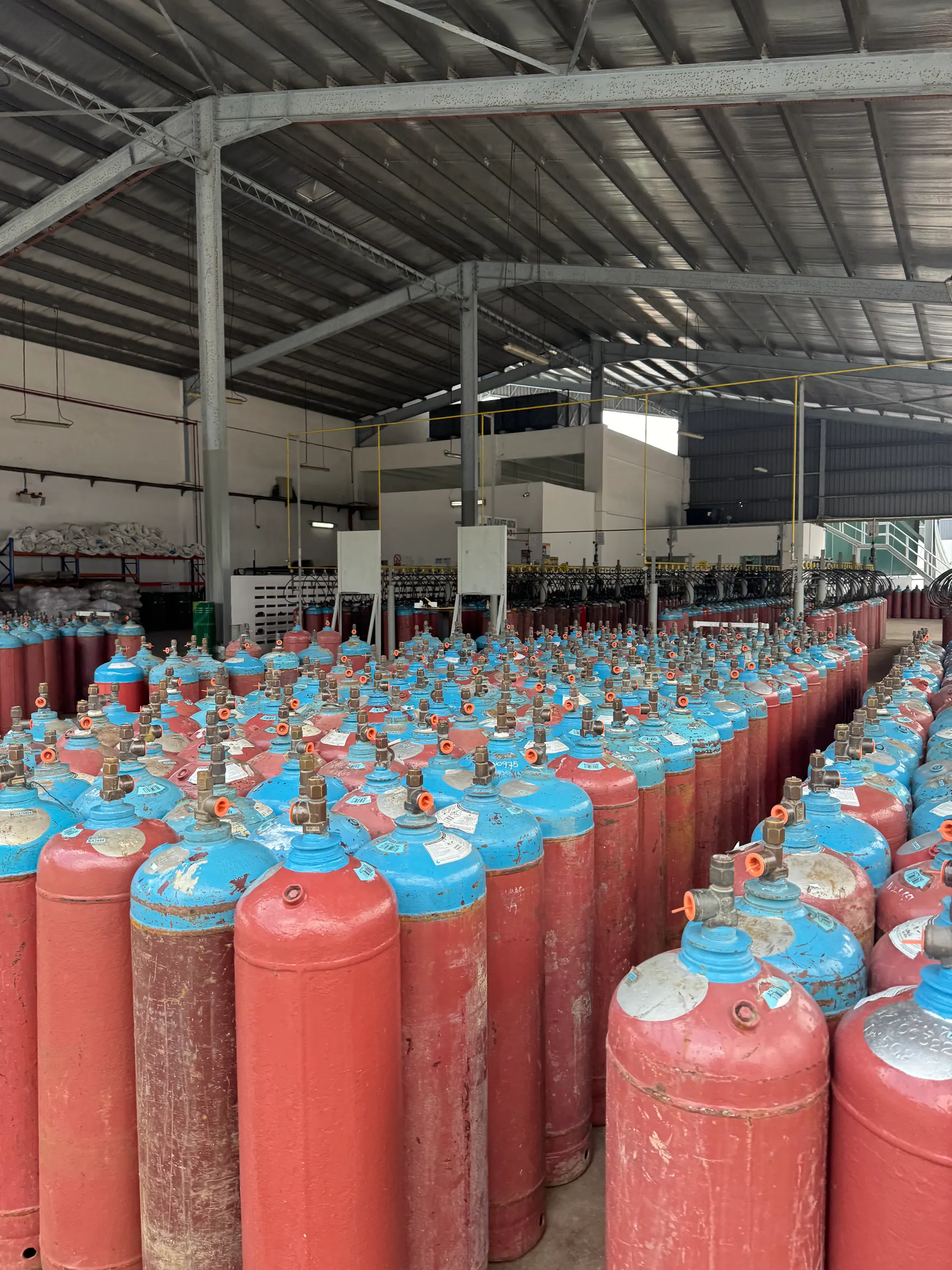

Cylinder storage hall filled with rows of gas cylinders under a steel roof, segregated by gas

Answers

Industrial gases FAQ — the questions asked every week

88 answers on gas supply, plant and equipment, and safety — each drawn from the product or safety page it belongs to, so nothing here contradicts the detail. Search them, or jump to a section.

88
Answers
4
Sections
1947
Answering since

Buying from KIGL 4

What does KIGL actually manufacture?

Two things. KIGL fills industrial and medical gases into cylinders at its own works, and designs and builds acetylene plants, PSA oxygen plants and PSA nitrogen plants. The combination is unusual: most gas companies do not build plant, and most plant builders have never run one.

What do you manufacture versus supply?

KIGL manufactures the compressed and dissolved gases it fills, and the plant and safety equipment it builds. It supplies, rather than produces, helium, hydrogen and nitrous oxide. That line is drawn explicitly on every page, because it affects what can be committed to on lead time.

Which areas do you supply?

Cylinder gas is filled at KIGL's own works in Guwahati and served from there; beyond its delivery radius it reaches customers through a network of agents across Uttar Pradesh, Madhya Pradesh, West Bengal, Assam, Odisha and other states. Equipment ships anywhere in India, including all seven North-East states, West Bengal, Uttar Pradesh, Madhya Pradesh, Chhattisgarh, Bihar and Odisha.

How do I get a quotation?

Use the enquiry form on the contact page, or telephone. State the gas or equipment, the quantity or capacity, and the delivery location.

Gases 26

Who manufactures acetylene gas in India?

The Kamrup Industrial Gases Limited (KIGL) manufactures acetylene in India, and has done so since 1947, filling dissolved acetylene at its own PESO-licensed works at Noonmati, Guwahati. India has many regional fillers, because a dissolved-acetylene cylinder is heavy for the gas it holds and travels badly, so the gas is made close to where it is used. Only a few companies both generate the gas and build the generating plant. KIGL does both.

More on Acetylene gas — dissolved acetylene (DA) made and filled by KIGL since 1947 →

Why is acetylene dissolved in acetone rather than stored as compressed gas?

Acetylene decomposes explosively under pressure on its own — it does not need oxygen to do so. Dissolving it in acetone, held inside a porous mass that fills the cylinder, keeps it stable. This is why an acetylene cylinder is heavy, why it must be used upright, and why it can never be filled like an ordinary compressed gas. It is also why liquid acetylene is not a commercial product: the liquid is unstable, so KIGL supplies dissolved acetylene in cylinders and cascades only, and never in a tanker.

More on Acetylene gas — dissolved acetylene (DA) made and filled by KIGL since 1947 →

Is argon gas flammable?

No. Argon is inert: it neither burns nor supports combustion, which is why it shields welds. The hazard is asphyxiation — at about 1.38 times the density of air it collects in pits and confined spaces and displaces oxygen with no smell or warning. Monitor oxygen before entry.

More on Argon gas (Ar) for TIG and MIG welding, heat treatment and laboratory use →

Why is argon better than nitrogen as a shielding gas?

Argon is a noble gas and genuinely inert under welding conditions. Nitrogen, despite being unreactive at room temperature, dissociates in the arc and can form nitrides in the weld metal, causing porosity and embrittlement in steels. Argon is also heavier than air, so it blankets the pool instead of drifting away.

More on Argon gas (Ar) for TIG and MIG welding, heat treatment and laboratory use →

Why does my CO₂ cylinder pressure gauge stay the same until it suddenly drops?

Because CO₂ is stored as a liquid. The gauge reads the vapour pressure above that liquid, which stays constant while any liquid remains, then falls away rapidly once the last of it has boiled off. **Weigh the cylinder** against the stamped tare weight to know what is left — the gauge will not tell you until it is nearly too late.

More on Carbon dioxide gas to IS 307, filled by weight for welding and process use →

Why does the regulator freeze up during heavy MIG welding?

Withdrawing CO₂ quickly boils liquid inside the cylinder, and that absorbs a lot of heat. The regulator can drop below freezing and ice up, restricting flow. Reduce the withdrawal rate, use a larger cylinder, use a manifolded pair, or fit a heated regulator for sustained heavy use.

More on Carbon dioxide gas to IS 307, filled by weight for welding and process use →

What is the difference between synthetic air and compressed atmospheric air?

Synthetic air is built from pure oxygen and pure nitrogen to a known composition. Compressed atmospheric air is whatever was in the room, squeezed — including its moisture, its hydrocarbons and any oil carried over from the compressor. For instrument calibration, laboratory work and anything where composition or cleanliness matters, only synthetic air gives you a defined product.

More on Synthetic air and compressed air in cylinders →

Should I buy cylinders of air instead of running a compressor?

Usually not. If you need volume for pneumatic tools, a compressor is far cheaper per cubic metre and cylinders make no economic sense. Cylinder air exists for the cases a compressor cannot serve: known composition, guaranteed cleanliness, portability, or a location with no power. Where compressed atmospheric air is required, a compressor is the correct answer and KIGL will say so.

More on Synthetic air and compressed air in cylinders →

How many components can you put in one mixture?

Up to ten. Most requirements are two or three — argon with CO₂, or a ternary welding blend — but process, research and instrument applications sometimes need considerably more, and those can be built. Send the full specification including the balance gas and KIGL will confirm feasibility before you commit.

More on Multi-component gas mixtures — up to ten components, blended to ±5 % →

What does ±5 % tolerance actually mean?

Each component lands within five per cent of the concentration you specified. Ask for 20 % CO₂ and you receive between 19 % and 21 %. For welding, inerting, process and leak-test work that is comfortably tight enough — arc behaviour and process performance are not sensitive at that level.

More on Multi-component gas mixtures — up to ten components, blended to ±5 % →

Is helium flammable?

No. Helium is inert and cannot burn. A leak rises to ceiling level and the hazard is asphyxiation in an enclosed space; do not confuse it with hydrogen, which is extremely flammable.

More on Helium gas supply — sourced, filled and delivered by KIGL →

Which companies manufacture helium in India?

None. Helium is extracted from natural gas fields that happen to hold it, and India has no such field in production, so every helium cylinder in the country is filled from imported gas. Any company describing itself as a helium manufacturer in India is a refiller or a supplier, as KIGL is. What distinguishes suppliers is reliability of supply and honesty about lead time, not a manufacturing claim nobody can make.

More on Helium gas supply — sourced, filled and delivered by KIGL →

When should I choose 99 % over industrial 98 %?

When the contamination in industrial grade is causing you a problem you can measure — a flame that will not hold, deposits on the work, or a downstream instrument drifting — but you do not need analytical-grade gas. KIGL specifies against the stated application and the fault observed, which is a sounder basis than the gas you have. That is a better basis for the decision than a number on a page.

More on High purity acetylene gas at 99 % — made in India, and custom grades on request →

What is the difference between this and ultra-high-purity acetylene?

Both are dissolved in DMF and both go through KIGL's purification system, so the solvent is not what separates them. Ultra-high-purity is taken further: 99.99 % against 99 %, phosphine and hydrogen sulphide below 10 ppm, dedicated cylinders that never see industrial service, and a certificate of analysis for each batch. It is built for atomic absorption spectroscopy. If you are running an instrument, that is the grade you want; if you are running a process that industrial gas is fouling, this one is usually enough.

More on High purity acetylene gas at 99 % — made in India, and custom grades on request →

Is hydrogen flammable?

Yes — from about 4 % to 75 % in air, the widest range of any common industrial gas, with a nearly invisible flame and a very low ignition energy. Leaks rise to ceiling level, so ventilate high and remove ignition sources.

More on Industrial hydrogen gas supplier — cylinders for chemical plants, heat treatment and laboratories →

Do you supply hydrogen gas to chemical plants?

Yes. Industrial hydrogen for hydrogenation, reducing atmospheres and process use is supplied in high-pressure cylinders and manifolded banks, with the purity specified against the process. State the monthly volume and the draw rate and KIGL will propose the cylinder arrangement and delivery cadence.

More on Industrial hydrogen gas supplier — cylinders for chemical plants, heat treatment and laboratories →

Can industrial oxygen be used for patients in an emergency?

No. The difference is not only purity but the entire manufacturing, filling and documentation regime — dedicated cylinders, batch traceability, and controls appropriate to a medicine. Industrial cylinders may carry residues from previous service and have no batch record behind them. Substituting industrial oxygen for medical oxygen is unlawful and unsafe, including during a shortage.

More on Medical oxygen to Indian Pharmacopoeia standard, in cylinders →

Do you supply liquid medical oxygen for hospital pipeline systems?

No. KIGL supplies medical oxygen in cylinders only. Liquid medical oxygen requires a vacuum insulated evaporator and cryogenic bulk logistics, which KIGL does not operate. For a manifold-fed pipeline KIGL supplies cylinder banks; a VIE installation requires a cryogenic bulk supplier. That is stated rather than taking an order KIGL cannot serve.

More on Medical oxygen to Indian Pharmacopoeia standard, in cylinders →

Why is nitrogen used for purging rather than compressed air?

Air is 21 % oxygen, so purging a flammable system with air can create exactly the explosive mixture you are trying to remove. Nitrogen is inert, displaces both oxygen and moisture, and leaves an atmosphere that will not support combustion. On acetylene equipment nitrogen purging is mandatory, never air.

More on Nitrogen gas to IS 1747, for purging, blanketing and inerting →

Is nitrogen dangerous if it is inert?

Yes — as an asphyxiant. Nitrogen is not toxic and gives no warning, which is precisely the danger. It displaces oxygen, and a nitrogen-filled vessel or pit can render someone unconscious in a breath or two with no smell or irritation to warn them. Confined-space entry after nitrogen purging requires oxygen monitoring without exception.

More on Nitrogen gas to IS 1747, for purging, blanketing and inerting →

Is nitrous oxide flammable?

No, but that is misleading in practice. N₂O does not burn, yet it decomposes at high temperature to release oxygen and will therefore support combustion vigorously — it behaves as an oxidiser. Materials that burn slowly in air burn fast in nitrous oxide. Treat it with the same caution as an oxygen cylinder: no oil, no grease, no ignition sources.

More on Nitrous oxide, N₂O (laughing gas), supplied for medical and industrial use →

How do I tell how much is left in the cylinder?

By weight. N₂O is stored as a liquid, so the pressure gauge reads vapour pressure and stays roughly constant until the liquid is exhausted, then drops abruptly. Weigh the cylinder and compare against the tare weight stamped on it. Relying on the gauge is how a theatre runs out mid-procedure.

More on Nitrous oxide, N₂O (laughing gas), supplied for medical and industrial use →

What is industrial oxygen?

Industrial oxygen is oxygen gas supplied for cutting, welding and process use. In India it is specified by IS 309; KIGL fills it at ≥99.5 % purity into high-pressure cylinders and cascades. It supports combustion rather than burning itself, which is why it drives oxy-acetylene cutting at flame temperatures around 3,100 °C. It is not made under pharmaceutical controls, so it is never a substitute for medical oxygen.

More on Industrial oxygen gas to IS 309, in cylinders and cascades →

Why must oxygen equipment be kept completely free of oil and grease?

Oxygen does not burn, but it makes other things burn violently. Hydrocarbons such as oil and grease can ignite spontaneously in the presence of high-pressure oxygen — no spark is needed. This is the single most common cause of serious oxygen incidents. Never lubricate an oxygen regulator, never handle fittings with oily gloves, and never use PTFE tape unless it is rated for oxygen service.

More on Industrial oxygen gas to IS 309, in cylinders and cascades →

Why DMF instead of acetone for high-purity acetylene?

DMF has a much lower vapour pressure than acetone, so far less solvent leaves the cylinder with the gas. In atomic absorption spectroscopy, solvent carry-over shows up directly as baseline noise and drift. DMF also permits a higher gas-to-solvent ratio, giving more usable gas per cylinder at a steadier delivery. KIGL uses DMF for both upper grades, the 99 % high purity and this one; acetone is used for industrial dissolved acetylene to IS 308. What separates this grade from the 99 % is not the solvent but how far the purification is taken, the dedicated cylinders and the batch certificate.

More on Ultra-high-purity acetylene — 99.99 %, dissolved in DMF, for atomic absorption spectroscopy →

Why do phosphine and hydrogen sulphide matter so much in AAS?

They disturb the flame and contribute background signal, which is exactly what degrades detection limits at trace concentrations. Industrial acetylene can carry phosphine in the up to the IS 308 limit of 100 ppm; the KIGL grade is held below 10 ppm. For trace metals work that difference determines whether a result is usable.

More on Ultra-high-purity acetylene — 99.99 %, dissolved in DMF, for atomic absorption spectroscopy →

Plant and equipment 42

What capacities does KIGL build acetylene compressors in?

Four: 15, 30, 50 and 75 m³/hr. They are the same W-type three-stage machine run at different speeds — 140, 280, 445 and 650 rpm — driven by 5, 7.5, 10 and 15 HP motors at 1440 rpm. Bores and stroke do not change across the range: 5½, 3 and 1⅝ inches on a 4-inch stroke.

More on KIGL-DA-COMP acetylene compressors — three-stage, 15 to 75 m³/hr →

Why does acetylene need a special compressor at all?

Because acetylene decomposes rather than simply compresses. Heat and pressure together can start an exothermic decomposition that needs no oxygen and no spark. That is why the gas is taken up in three stages rather than one, why the cylinders sit immersed in water, and why the temperature limit at the compressor is written on the hourly shift log. An air compressor in acetylene service is not a cheaper machine; it is the wrong machine.

More on KIGL-DA-COMP acetylene compressors — three-stage, 15 to 75 m³/hr →

What does the cooler-condenser do?

It takes the heat out of generator gas and condenses most of the water the gas is carrying. Gas can leave the generator at anything up to the 70 °C ceiling, saturated with moisture. Dropping its temperature drops how much water it can hold, so the bulk of that moisture falls out here rather than loading the low-pressure drier.

More on Acetylene cooler-condenser and scrubber — the first and last wet stages →

Why is there a scrubber as well as a purifier?

They remove different things. The chemical purifier takes out phosphine and hydrogen sulphide, which are the impurities IS 308 puts numerical limits on. The scrubber washes out ammonia, and catches any purifying mass carried over from the purifier. Gas that skipped the scrubber would carry both into the high-pressure drier and then the cylinder.

More on Acetylene cooler-condenser and scrubber — the first and last wet stages →

Why is an acetylene cylinder filled by weight rather than by pressure?

Because the pressure in a dissolved acetylene cylinder tells you almost nothing about how much gas is in it. The acetylene is dissolved in acetone held in a porous mass, so the pressure reflects temperature and the acetone's saturation far more than the quantity present. The only reliable measure is weight. See [cylinder pressure does not show contents](/guides/acetylene-cylinder-pressure-does-not-show-contents).

More on Acetylene cylinder filling plants — manifold, arrestors, weighing and the filling hall →

What pressure does the charging manifold run at?

12 to 14 kg/cm²g, held by a back-pressure valve. The compressor's own high-pressure switch is set at 24 kg/cm²g, well above it, and IS 15190 (Part 2) requires a back-pressure regulator after the high-pressure drier holding 14 to 17 kg/cm² gauge. The manifold sits at the bottom of that stack, and a plant where the three figures disagree has had one of them moved.

More on Acetylene cylinder filling plants — manifold, arrestors, weighing and the filling hall →

Why does an acetylene plant need two driers?

Because they do different jobs at different pressures. The low-pressure drier takes bulk moisture out of generator gas so the chemical purifier is not flooded. The high-pressure drier works after compression, where the same water content is a far higher proportion of a much smaller gas volume, and removes what would otherwise go into the cylinder with the acetylene.

More on Acetylene driers — the two drying stages, low pressure and high pressure →

Why is the gas deliberately wet leaving the generator?

Because wet acetylene is safer to compress than dry. Moisture raises the energy needed to start a decomposition in the gas, so the generator is run saturated on purpose. The consequence is condensate through every compression stage, which is why the traps are drained hourly. The [wet versus dry](/guides/wet-acetylene-is-safer-than-dry) guide sets out the reasoning.

More on Acetylene driers — the two drying stages, low pressure and high pressure →

Why can there be no copper in an acetylene line?

Acetylene reacts with copper to form copper acetylides, which are explosive and shock-sensitive. This rules out copper pipe, copper fittings and high-copper brasses anywhere in contact with the gas. It is the single most commonly violated rule in acetylene reticulation, because brass fittings are the default in every other pipe-fitting job on site.

More on Acetylene pipelines — low pressure, no copper, arrestors at both ends →

Why does an acetylene line run at such low pressure?

Because acetylene decomposes explosively under pressure without needing any oxidant at all. It is not a fuel that becomes dangerous when it meets air — it is a molecule that comes apart on its own if compressed. Every part of an acetylene system, from the generator to the pipeline, is designed around keeping it below that threshold.

More on Acetylene pipelines — low pressure, no copper, arrestors at both ends →

What does an acetylene gas plant cost to run per cubic metre?

Calcium carbide dominates the running cost, and it takes about 3.3 kg of good 25–50 mm carbide to make one Nm³ of acetylene on KIGL's published yield of 300 litres per kilogram. Multiply 3.3 by your delivered carbide price and you have the dominant line in your cost per Nm³; add acetone top-up, power, water, cylinder handling and the operator. Carbide yield is therefore the number that matters, so ask any supplier for measured yield under load rather than a nameplate figure.

More on Acetylene gas plants — designed, built and commissioned in India since 1947 →

How much space does an acetylene plant need?

A 25 Nm³/h plant needs approximately 2,000 m² of land, of which the plant building itself is only about 12 × 12.5 m. Almost all the rest is separation distance: KIGL's general-arrangement drawing sets 9 m from the sludge tank and 15 m from any other building, and the PESO layout requires 15 m to the boundary, 30 m to an oxygen plant and 90 m to an air-compressor intake. Layout is therefore driven by the safety code rather than by the equipment footprint, and IS 14814 governs the separations, ventilation and ignition-source exclusion. KIGL prepares a site layout against your plot before quoting.

More on Acetylene gas plants — designed, built and commissioned in India since 1947 →

What type of acetylene generator does KIGL build?

KIGL builds the carbide-to-water type, which is the design IS 8471:2003 is written around and the only one suited to continuous plant duty. Carbide is screw-fed into a large body of water, so the water absorbs the heat of reaction and the tank stays below 70 °C. The alternative water-to-carbide and dry designs cannot hold that temperature at 25 Nm³/h and above.

More on Acetylene generators — the carbide-to-water vessel at the head of every plant →

How much water does an acetylene generator need per kilogram of carbide?

Between 6 and 8 litres per kilogram, and never below 6. The water is not a reagent quantity but a heat sink: the reaction itself consumes only about 0.5 litre per kg. Running below the floor lets the tank climb towards 70 °C, at which point polymerisation and discoloured gas begin. The [water-to-carbide ratio](/guides/acetylene-generator-water-to-carbide-ratio) guide works the arithmetic.

More on Acetylene generators — the carbide-to-water vessel at the head of every plant →

What makes a plant "continuous duty" rather than just larger?

Capacity is the headline; duty is the engineering. A plant specified for continuous generation is built around the assumption that it will not be stopped for routine attention — carbide charging, sludge handling and maintenance access are arranged so the plant keeps running. Buying a large plant and running it continuously without that specification is how plants end up standing idle for the wrong reasons.

More on KIGL-DA-100 acetylene gas plant — built for continuous operation →

Is this the plant for a commercial gas filling business?

It is the size specified for one, yes. Filling cylinders commercially is a different undertaking from generating gas for own use: it brings cylinder ownership, testing and requalification, filling records, and its own licensing. KIGL does all of that across three stations, and can be specific about where the plant is and is not the hard part.

More on KIGL-DA-100 acetylene gas plant — built for continuous operation →

At what consumption does making acetylene beat buying it?

It depends on your cylinder price, your carbide price and how much of your current spend is cylinder rental and freight rather than gas. Those last two are where most of the saving actually sits, and they are the numbers buyers most often leave out. Send KIGL twelve months of gas invoices and it will work the figures through with you, including saying so if the answer is that buying cylinders remains the better option.

More on KIGL-DA-25 acetylene gas plant — the smallest plant worth owning →

What does a plant this size need in terms of space and people?

An acetylene plant is a licensed installation, not a machine you put in a corner. It needs a compliant building, separation distances, a PESO licence, trained operators and a maintenance regime. The plant is often the smaller part of the project, and that expectation is better set before purchase than after.

More on KIGL-DA-25 acetylene gas plant — the smallest plant worth owning →

What compressor does the KIGL-DA-50 use?

The DA-50 configuration runs an Ingersoll Rand 15 T2 — a three-stage reciprocating acetylene compressor. KIGL holds the clearances, torque figures and maintenance intervals for it, because it maintains these machines in its own filling works as well as at customer sites. That matters when a part or a setting is needed at short notice.

More on KIGL-DA-50 acetylene gas plant — the workhorse of the range →

The compressor is knocking. What is it?

In KIGL's experience on this machine, knocking is the piston head, the connecting rod, or the gudgeon pin bush, in roughly that order of likelihood. It is rarely the crankshaft, which is where diagnosis tends to jump first and where the expensive error lies. Stop the machine and call KIGL before stripping it.

More on KIGL-DA-50 acetylene gas plant — the workhorse of the range →

Why does acetylene need purification at all?

Because the calcium carbide it is made from is not pure. Calcium phosphide and calcium sulphide in the carbide react with water alongside the carbide itself and give phosphine and hydrogen sulphide in the gas. Both are toxic, both corrode brass and steel in cylinders and regulators, and both carry into weld metal. IS 308 caps them, and the purifier is what gets the gas under the cap.

More on Acetylene purification systems — purifier, driers and scrubber that bring generator gas to IS 308 →

What does an acetylene purifier actually remove?

Phosphine (PH₃) is the main target, followed by hydrogen sulphide (H₂S), with ammonia and traces of arsine behind them. In a wet carbide-to-water generator most of the ammonia and sulphur are already washed into the lime slurry, so the purifier's real job is phosphine. Moisture is handled separately by the two drier stages.

More on Acetylene purification systems — purifier, driers and scrubber that bring generator gas to IS 308 →

Do you have an MSDS for your flashback arrestors?

No, and none is required. A safety data sheet describes a chemical substance or mixture. A flashback arrestor is an article — a manufactured device — so it falls outside the scope of GHS safety data sheets. What you need for your safety file is the technical datasheet and the declaration of conformity to EN ISO 5175-1, both of which KIGL supplies. Where a purchasing system demands an "MSDS" for arrestors, send KIGL the request and it will provide the correct documentation in a form an auditor will accept.

More on Flashback arrestors for acetylene, oxygen and fuel-gas systems →

Where should flashback arrestors be fitted?

For the highest level of protection, fit them at both ends: at the regulator outlet and at the torch inlet, on both the fuel gas and the oxygen lines. The regulator unit protects the cylinder; the torch unit protects the hose. Fitting only one leaves a length of hose unprotected.

More on Flashback arrestors for acetylene, oxygen and fuel-gas systems →

Why put in a pipeline instead of moving cylinders?

Because moving cylinders is where the injuries and the losses are. A reticulated system takes the cylinder handling off the shop floor, keeps the cascade in one properly designed and ventilated place, cuts the number of part-used cylinders sitting around, and makes it far harder for someone to connect the wrong gas because the outlet at the bench only carries one.

More on Industrial gas pipelines — reticulated supply to every point of use →

Can one pipeline carry different gases?

Never in the same pipe, and the two lines are not built the same way. Acetylene must have no copper anywhere in contact with the gas; oxygen must be degreased to a standard and kept free of any hydrocarbon. Those are opposite disciplines, and a contractor who treats them as one job is the risk you are trying to design out.

More on Industrial gas pipelines — reticulated supply to every point of use →

Which thread goes with which hose bore on the KIGL-FBA-HP?

A 5.0 or 6.0 mm hose takes a 1/4 in BSP outlet, and an 8.0, 9.0 or 10.0 mm hose takes a 3/8 in BSP outlet. Both are offered left hand for fuel gas and right hand for oxygen, so an order states the bore in millimetres and the hand of the thread.

More on KIGL-FBA-HP — the hose-mounted flashback arrestor for welding and cutting sets →

How many KIGL-FBA-HP units does one welding set need?

Four, counted per line and per end rather than per set. Full protection is a device at the regulator outlet and a device at the torch inlet, on the fuel-gas line and on the oxygen line. Fitting only one end leaves the length of hose between them unprotected, and the hose is where the flame travels.

More on KIGL-FBA-HP — the hose-mounted flashback arrestor for welding and cutting sets →

Why is the acetylene rating 25.0 bar when the other arrestors are rated 1.5 bar?

Because this is a pipeline and manifold fitting, not a welding-set fitting. 25.0 bar is the published maximum working pressure of the body. It is not a statement that acetylene may be run at 25 bar: IS 14814 : 2023 cl 7.2.1 holds free acetylene near atmospheric, and that limit is set by the gas rather than by the device. The figure was checked against the KIGL-FBA specification on 14 November 2026.

More on KIGL-FBA-NRV — non-return valve with flame trap, DN6 to DN150 →

Which DN sizes are available for which gas?

Threaded, air and oxygen run DN15 to DN40, LPG and natural gas DN10 to DN40, hydrogen DN6 to DN25 and acetylene DN6 to DN20. Flanged, LPG and natural gas run the full DN32 to DN150, air and oxygen DN40 to DN100, hydrogen DN32 to DN80 and acetylene DN32 to DN50. The matrix is on this page, and the size and gas service are confirmed at order.

More on KIGL-FBA-NRV — non-return valve with flame trap, DN6 to DN150 →

What is the difference between the KIGL-FBA-PM and the hose-mounted KIGL-FBA-HP?

Position and element count. The -PM is a fixed installation on a pipeline or a gas manifold and carries five elements, including a contaminant filter ahead of the flame trap and a temperature-activated cut-off on fuel-gas bodies. The [KIGL-FBA-HP](/kigl-fba-hp-hose-flashback-arrestor) screws onto a welding or cutting hose and carries a non-return valve with a flame-arrestor block. The -PM also holds 25.0 bar on oxygen against the -HP at 20.0 bar.

More on KIGL-FBA-PM — the pipeline and manifold flashback arrestor →

Why are three KIGL-FBA-PM units fitted in series on a charging rack?

Because a cylinder charging manifold is the one place where a flame front has a long straight run of pipe to accelerate in, and the gas bank behind it is the largest inventory on the site. Three bodies in series give three independent quenching stages. The arrangement is set out under [acetylene cylinder filling plants](/acetylene-cylinder-filling-plant).

More on KIGL-FBA-PM — the pipeline and manifold flashback arrestor →

How many KIGL-FBA-WT units does an acetylene plant need?

The count scales with generator capacity rather than with the number of outlets. On the KIGL-DA series it runs from two on a DA-25 to six on a DA-150. Plants are found running with two where the capacity calls for six, which is why the figure is checked against the rated output rather than against what is installed.

More on KIGL-FBA-WT — the water-seal arrestor for acetylene plant and bulk lines →

What maintenance does a water-seal arrestor need that a dry one does not?

Its water level. The seal is the water, so the level is checked hourly through a running shift, and the unit must not carry water over into the downstream line. A dry arrestor has no equivalent daily duty. How the seal holds and what defeats it is set out in [wet arrestor hydraulic seal](/guides/wet-flashback-arrestor-hydraulic-seal).

More on KIGL-FBA-WT — the water-seal arrestor for acetylene plant and bulk lines →

Is a medical gas pipeline just pipework?

No, and treating it as pipework is how hospitals get into trouble. It is a regulated installation carrying a licensed drug directly to patients, with zone isolation, alarms, purity and pressure requirements at the outlet, and a documentation trail that an inspector will ask to see. A general plumbing contractor is not the right party to install one.

More on Medical gas pipeline system (MGPS) — from the manifold to the bedside →

What does commissioning actually involve?

Far more than pressure testing. The system has to be proved for cross-connection, purity at every outlet, flow and pressure under simulated peak demand, correct alarm operation and correct zone isolation. Cross-connection testing is the one that matters most — an oxygen outlet delivering the wrong gas is the failure mode the whole design exists to prevent.

More on Medical gas pipeline system (MGPS) — from the manifold to the bedside →

Oxygen does not burn — why is an oxygen line a fire risk?

Because oxygen does not burn, it makes everything else burn, and it does so at a violence with no everyday equivalent. In a high-pressure oxygen system, hydrocarbon contamination can ignite from the heat of compression alone — no spark, no external flame. Once started, the fire consumes the metal of the fitting itself.

More on Industrial oxygen pipelines — where cleanliness is the whole design →

What does "oxygen-clean" actually mean?

That every component in contact with the gas has been degreased to a specification and kept free of hydrocarbon since. It is not a description of how the pipe looks. A visually spotless fitting handled with oily gloves is not oxygen-clean, and nothing about its appearance will tell you.

More on Industrial oxygen pipelines — where cleanliness is the whole design →

How is a PSA nitrogen plant different from a PSA oxygen plant?

Different adsorbent and a different mechanism. A [PSA oxygen plant](/psa-oxygen-plant) uses a zeolite sieve that adsorbs nitrogen by capacity, letting oxygen through. A PSA nitrogen plant uses a **carbon molecular sieve** that separates by *rate*: oxygen molecules diffuse into the sieve micropores faster than nitrogen does, so oxygen is held and nitrogen passes through as product. Same pressure-swing cycle, opposite product, different science.

More on PSA nitrogen plants — on-site nitrogen generation from compressed air →

What purity can a PSA nitrogen plant reach?

Considerably higher than a PSA oxygen plant — nitrogen generators routinely run from around 95 % up to very high purity. Unlike oxygen, there is no argon ceiling limiting the product, so the purity you get is a design choice rather than a physical wall.

More on PSA nitrogen plants — on-site nitrogen generation from compressed air →

What does PSA stand for in an oxygen plant?

Pressure swing adsorption. Compressed air is passed over a zeolite molecular sieve that adsorbs nitrogen at high pressure; the vessel is then swung to low pressure so the sieve releases the nitrogen and regenerates. Oxygen passes through as the product, typically at 93 to 95 %.

More on PSA oxygen gas plants — on-site oxygen generation from air →

Why does a PSA plant produce 93–95 % oxygen rather than 99 %?

Because the molecular sieve separates nitrogen from oxygen but cannot separate argon from oxygen — argon and oxygen have very similar molecular characteristics for this purpose. Air is about 0.93 % argon, and essentially all of it stays with the product. That sets a practical ceiling in the mid-nineties. Reaching 99 %+ requires cryogenic separation, which is a fundamentally different and far larger plant.

More on PSA oxygen gas plants — on-site oxygen generation from air →

Safety 16

Is acetylene heavier or lighter than air?

Slightly lighter — relative vapour density is about 0.91. It does not reliably rise and disperse, though, so it can still accumulate in poorly ventilated spaces. Ventilation must be at high level and adequate; do not assume a leak will clear itself.

More on Acetylene, dissolved →

Can acetylene explode without oxygen?

Yes. This is what makes acetylene different from other fuel gases. Under pressure, heat or shock it can decompose exothermically into carbon and hydrogen with no oxidant present. That is why it is dissolved in a solvent inside a porous mass, and why a hot cylinder is an emergency.

More on Acetylene, dissolved →

Why is argon more dangerous in a confined space than nitrogen?

Because it is heavier. Nitrogen is close to the density of air and mixes; argon is about 1.38 times heavier, so it sinks into pits, trenches, tank bottoms and vessel interiors and **stays there**, sometimes for hours after work has stopped. An argon-filled pit looks exactly like an empty one, and ventilation at high level does nothing to clear it.

More on Argon, compressed →

Will an argon atmosphere give any warning?

None. No smell, no irritation, and no feeling of breathlessness — the urge to breathe responds to carbon dioxide build-up, not oxygen shortage. Collapse can occur within a breath or two, with no sensation that anything is wrong.

More on Argon, compressed →

Why is carbon dioxide more dangerous than nitrogen or argon?

Nitrogen and argon are simple asphyxiants — they harm you only by displacing oxygen. Carbon dioxide is physiologically active in its own right. It affects respiration from roughly 2 % in air, and becomes life-threatening well before oxygen has fallen to a dangerous level. An atmosphere can therefore have adequate oxygen and still be fatal.

More on Carbon dioxide →

What happens to a CO₂ cylinder in Indian summer heat?

This matters more here than in temperate countries. CO₂ has a critical temperature of about 31 °C. Above that there is no liquid phase at all, and cylinder pressure rises steeply with further heating. A cylinder left in direct sun on a hot day can exceed its critical temperature easily. Store CO₂ in shade and never allow cylinders to become hot.

More on Carbon dioxide →

Why does helium need different precautions from argon?

Because it goes the other way. Argon is about 1.38 times heavier than air and sinks into pits; helium is roughly a seventh the density of air and **rises**. The same room needs the opposite response — ventilate at high level, monitor at head height and above, and treat ceiling voids, roof spaces and the tops of tall vessels as the danger zone rather than the floor.

More on Helium, compressed →

Is the voice change a reliable warning?

It is a warning, not a safeguard. Helium carries sound faster than air, so speech rises in pitch in a helium-rich atmosphere — and unlike most asphyxiants that gives you something you can actually notice. But it tells you the atmosphere is already contaminated, and it says nothing about how much oxygen is left. Treat it as a reason to leave, not a reason to measure.

More on Helium, compressed →

What makes hydrogen more dangerous than other fuel gases?

Two things together. The flammable range runs from **4 % to 75 %** in air, so almost any leak that mixes at all produces an ignitable atmosphere — where most fuel gases give you a narrow window, hydrogen gives you nearly the whole span. And it ignites on very little energy, so static from clothing or an ungrounded fitting is enough.

More on Hydrogen, compressed →

Is it true you cannot see a hydrogen flame?

Effectively, yes, in daylight. Hydrogen burns to water vapour with almost no soot, so there is nothing incandescent to make the flame visible — it is pale blue and washes out completely in sunlight. There have been serious burn injuries to people who walked into a hydrogen flame they had no way of seeing. Where a leak is suspected, a broom straw or thermal camera held ahead of you is the traditional and still correct answer.

More on Hydrogen, compressed →

If nitrogen is 78 % of the air I breathe, how can it be dangerous?

Because the danger is not the nitrogen — it is the absence of oxygen. Air is safe because the other 21 % is oxygen. An atmosphere of pure nitrogen contains none, and a person entering it can lose consciousness in one or two breaths. This is the single most misunderstood industrial gas hazard.

More on Nitrogen, compressed →

Will I feel breathless before I collapse?

No, and this is what makes nitrogen lethal. The urge to breathe is triggered by rising carbon dioxide in the blood, not by falling oxygen. In a nitrogen atmosphere you continue to exhale CO₂ normally, so no alarm is raised physiologically. People lose consciousness without any warning sensation at all.

More on Nitrogen, compressed →

Why is an oxidiser dangerous if it will not burn itself?

Because fire needs an oxidant, not necessarily air. Nitrous oxide supplies one. In a nitrous oxide atmosphere, materials that are difficult to ignite in air catch readily and burn far more fiercely, and oil or grease on a fitting can ignite from the heat of compression alone when a valve is opened quickly. The gas is not the fuel; it is what lets everything else become one.

More on Nitrous oxide →

What happens above 600–650 °C?

It decomposes exothermically into oxygen and nitrogen — it releases heat and produces free oxygen. This is the property that makes a nitrous oxide fire so difficult: once decomposition starts it feeds itself, and **cutting off the air supply does not stop it**. A cylinder involved in a fire must be cooled from a protected position or the area evacuated.

More on Nitrous oxide →

Can oxygen itself catch fire?

No. Oxygen does not burn — it makes other things burn. That distinction misleads people into underestimating it. An oxygen-enriched atmosphere causes materials that are normally difficult to ignite to burn fiercely and fast, and it lowers the energy needed to start them.

More on Oxygen, compressed →

Why can oil and grease ignite on contact with oxygen?

Hydrocarbons are highly reactive with concentrated oxygen. Under pressure, the heat generated by rapid compression of oxygen in a fitting can be enough to ignite an oil film with no external spark at all. This is the most common cause of serious oxygen incidents, and it is entirely preventable by keeping the system clean.

More on Oxygen, compressed →
