Medical Gas Pipeline Systems: The Basics

Medical gas pipeline systems: what a hospital must have in place

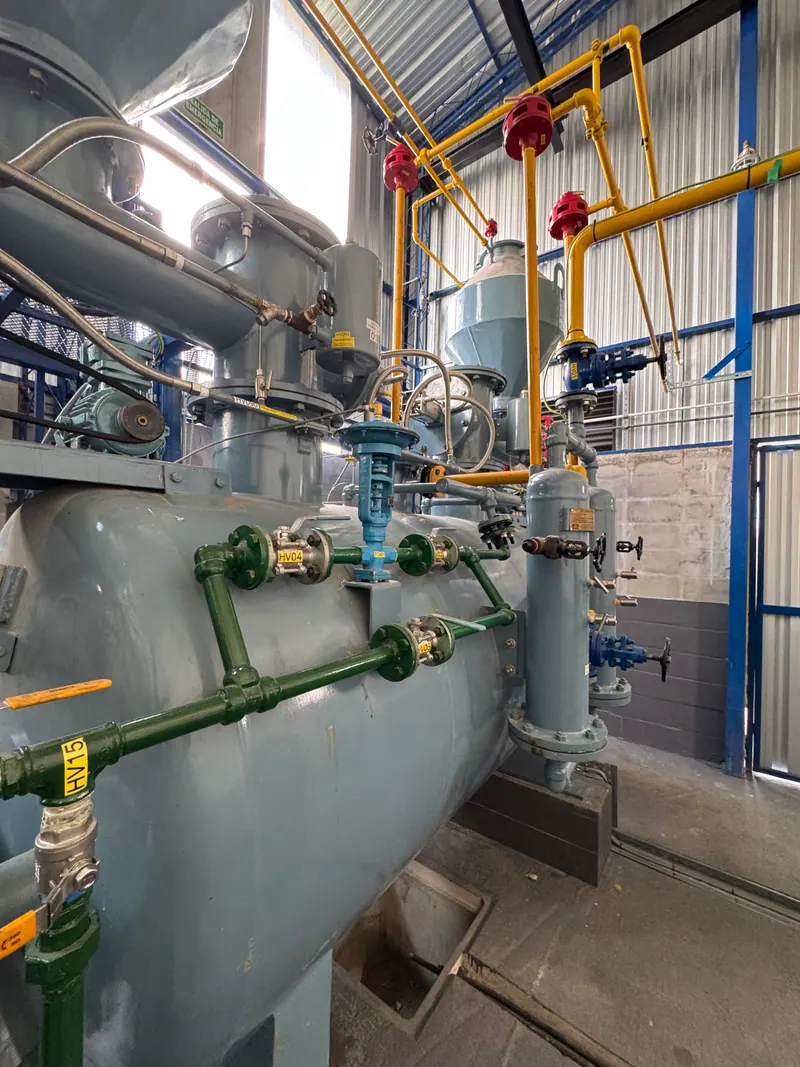

A medical gas pipeline system delivers 4 services to the bedside through fixed pipework: oxygen, nitrous oxide, medical air and vacuum. It is a regulated installation with gas-specific non-interchangeable outlets, zone isolation valves, alarms, and full verification before any patient is connected.

Not plumbing

A medical gas pipeline system carries oxygen, nitrous oxide, medical air and vacuum from a central supply to outlets at the bedside. It looks like pipework. It is a regulated medical installation, and that difference matters at every stage.

An ordinary plumbing error in this system does not produce a leak. It produces the wrong gas at a bedside, and the person it reaches has no way of knowing.

The features that make it safe

Non-interchangeable, gas-specific outlets. A hose or device for one gas physically cannot be connected to another. This is the most important safety feature in the whole system, because it moves prevention of a wrong-gas connection from the vigilance of a tired human being at three in the morning to the geometry of a fitting. Never defeat it. Never fit an adaptor.

Zone isolation valves. So one area can be isolated for maintenance or in an emergency without shutting the gas off to the hospital. They must be labelled with the area they serve and be genuinely reachable — a zone valve behind a locked door or a stack of equipment is not a control.

Alarms. Pressure and supply alarms, monitored where somebody will actually see and act on them.

Reserve supply. In every design. A hospital cannot be without oxygen while a delivery is arranged, so the system must survive the loss of its primary supply.

Oxygen cleanliness applies throughout

Every part of the oxygen system must be cleaned for oxygen service — degreased, verified, protected and certified. Hospital systems run at modest pressure and the requirement does not relax because of it.

The consequence of contamination in an oxygen line is not proportional to the pressure. The mechanisms are set out on oxygen pipeline cleanliness.

Before anyone is connected to it

Verification and certification, in full:

Pressure testing
Cross-connection testing — proving the gas leaving each outlet is the gas written on it
Purity testing at the outlets, not only at the source
Alarm and zone valve testing
Complete documentation, handed over and kept

Cross-connection testing is the one that matters most. It is the failure that would be catastrophic and completely invisible until a patient was harmed. It is also the failure most often introduced later, by a modification nobody re-verified.

Supply options

Cylinder manifold — automatic changeover, with reserve
Bulk liquid oxygen — for larger hospitals
On-site PSA oxygen — removes delivery dependency, adds a plant to run and maintain

Whichever is chosen, the medical oxygen itself must be a pharmaceutical product made under drug licence. The distinction from industrial oxygen is on industrial vs medical oxygen, and it is not a distinction that can be waived when supply is tight.

Maintenance

Under a planned regime, with records: alarms tested, valves exercised, outlets checked, and any modification re-verified before use.

That last point is where correct systems go wrong. A system verified on the day it was commissioned stays correct only if every change to it is verified too.

Sources

IS 12406 — Medical oxygen

Medical gas pipeline systems — frequently asked questions

Why are medical gas outlets non-interchangeable?

So that a hose or device for one gas physically cannot be connected to another. It is the single most important safety feature in the system, because it moves prevention of a wrong-gas connection from the vigilance of a tired human being to the geometry of the fitting. Never defeat it, and never fit an adaptor.

What are zone valves for?

So one area can be isolated for maintenance or in an emergency without shutting the gas off to the rest of the hospital. They must be labelled with the area they serve and be genuinely reachable — a zone valve behind a locked door or a stack of equipment is not a working control.

What has to happen before a system is used?

Verification and certification: pressure testing, cross-connection testing, purity testing at the outlets, alarm testing, and full documentation. Cross-connection testing matters most — it proves the gas leaving each outlet is the gas written on it, which is the one failure that would be catastrophic and completely invisible.

Can a general plumbing contractor install one?

No. It is a regulated installation needing gas-specific materials, oxygen-service cleanliness, competent installers and formal verification. The consequence of an ordinary plumbing error here is not a leak — it is the wrong gas at a bedside.

What supplies the system?

A cylinder manifold, a bulk liquid supply, or an on-site PSA oxygen plant — with a reserve in every case. The reserve is not optional: a hospital cannot be without oxygen while a delivery is arranged, so the design must survive loss of the primary supply.

How is it maintained?

Under a planned regime with records: alarms tested, valves exercised, outlets checked, and any modification re-verified before use. A modification made without re-verification is how cross-connections get introduced into systems that were correct the day they were commissioned.
